PUZU PZ-X6800S 10channels Car Audio DSP Amplifier 500W RMS power for Premium sound system upgrade support Plug&Play
Original price was: ₩1,130,971.93.₩847,875.07Current price is: ₩847,875.07.
1.6CH TO 10CH
2.8ch power output 500W RMS
3.Support all kinds of car with premium amplifier system
like Bose/JBL/Harman Kardon/B&O by plug and play,check the cable list
4.Input &output mixer
5.fully 10ch EQ control by android APP & Windows software(free downlaod)
6.support Optical SPDIF/coaxial/bluetooth 5.0/low level input
7.support LCD display contorller(extra buy press here)
144 in stock
Secure payment
Secure payments with identity verification
Buyer Protection
Quality guaranteed products

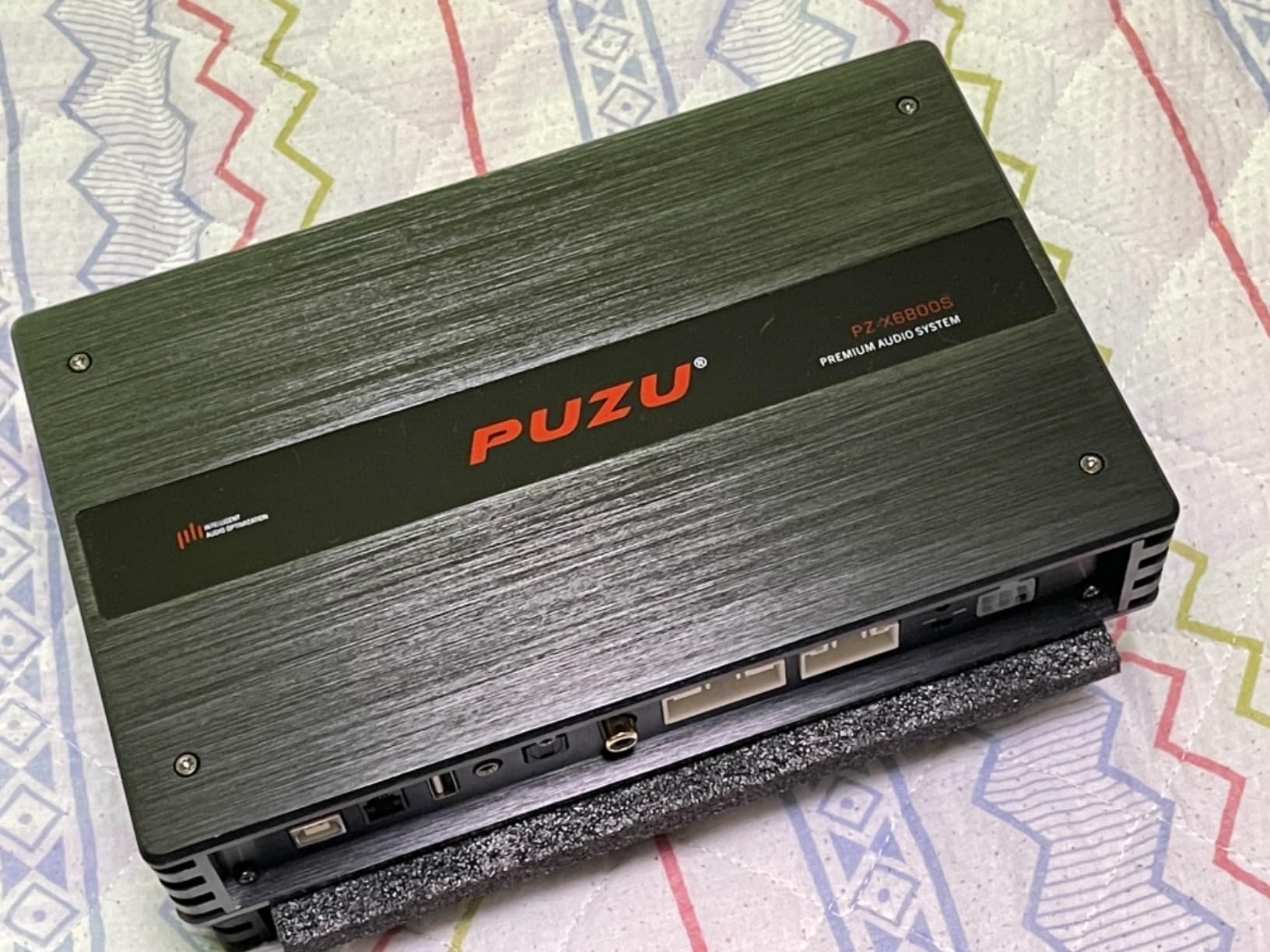

Introduction of PZ-X6800S
PZ-X6800S is a Premium Car Audio 8CH Amplifier with 10CH DSP Processor upgrade for those car with factory OEM Amplifier
like Bose/JBL/Harman Kardon/BMW HiFi,L7/Burmester/Infinity/Dynaudio/etc.Which is easily do the installation by plug & play,it keep safety & save space for your

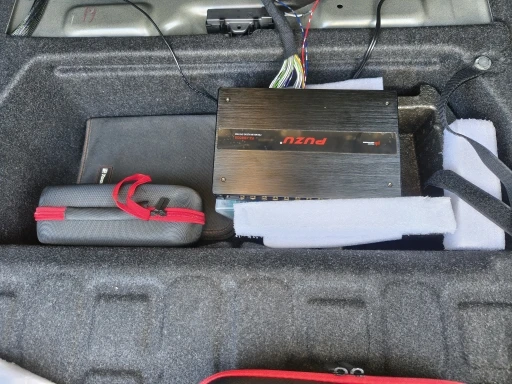

car.invisible installation,You can put it under your seat.keep tiny & clean
PZ-X6800S model PUZU delivers an extremely compact sound power plant in a shapely housing with astonishing 8 channels power output, including a freely configurable 10-Channel DSP. 6ch high level input with 10ch output freely input & out mixer, PZ-X6800S Amp offers multi upgrade solutions for you, CH1~CH4 with 4X50W RMS which you can drive for your normal speakers like tweeter and rear door speakers CH5~CH8with 4X75W output power which you can drive for your under seat woofers and front door speakers. The compact sound miracle is particularly suitable for loudspeaker systems in 3-Way active operation. With the DSP, the crossover frequencies, time alignment and frequency corrections can be perfectly adjusted.
Technical Date
output power RMS/MAX
CH1~CH8 4ohm——————-(CH1~CH4) 4X50/150W | (CH5~CH8)4X75/180W
CH1~CH8 2ohm——————-(CH1~CH4)4X110/260W |(CH5~CH8)4X150/320W
Input——————————–6X high level speaker input
Optical SPDIF input
USB inputCoaxial input
Bluetooth input
2CH RCA (AUX L/R) input
input sensitivity———————5~11volts
Out puts—————————–8X speaker

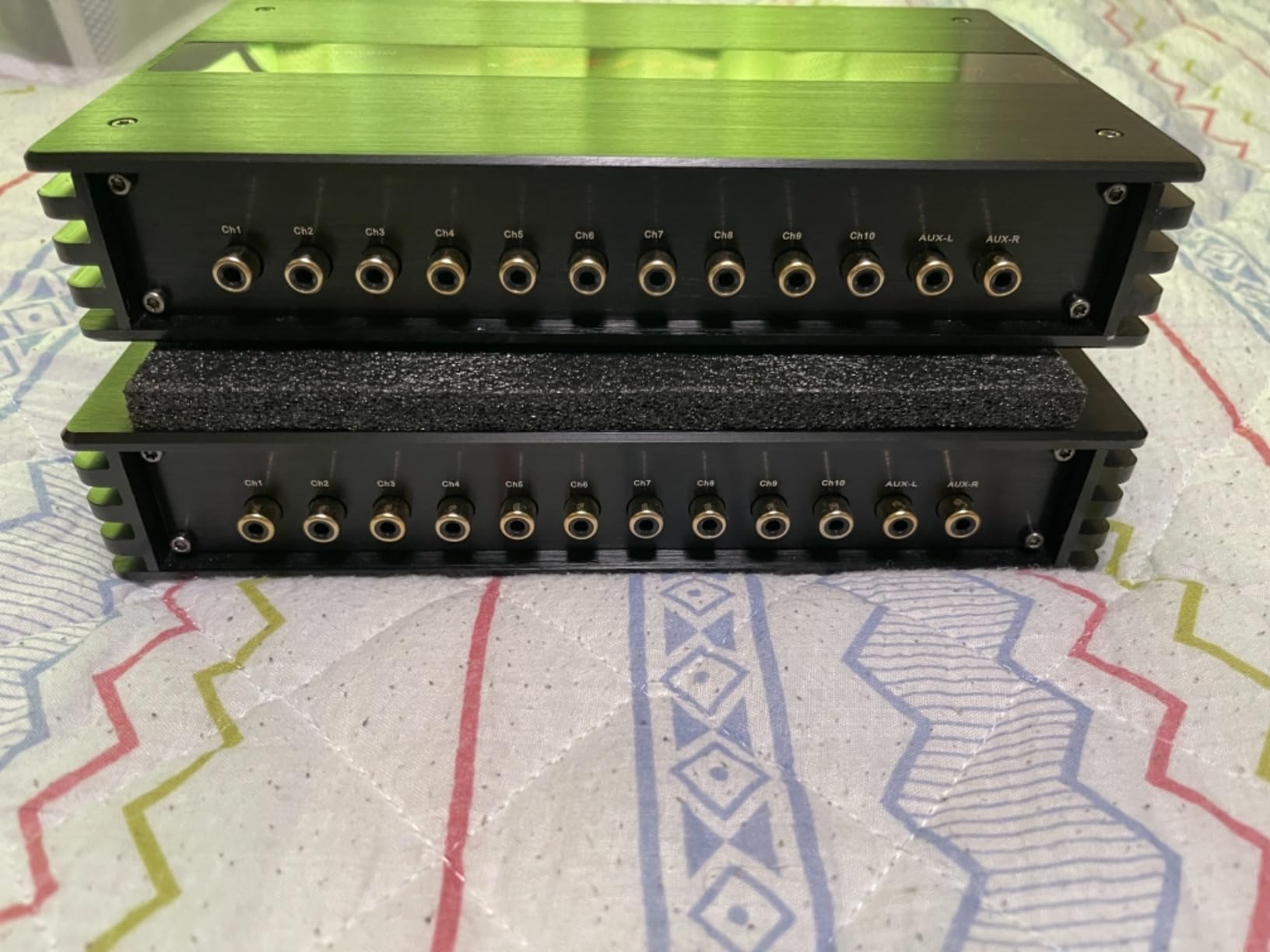

10x RCA low level output
Output voltage RCA—————-0.8~3V
Frequency responds—————-20Hz~20KHz
DSP resolution———————-64bit
DSP power—————————295MHz
S/N———————————->108dB
Isolation—————————-->90dB
Working voltage——————–10.5~16Volts
Product size————————-240X150X42(mm) 94.4X59X16.5(inch)
THD———————————-<0.015%
Damping factor———————->100

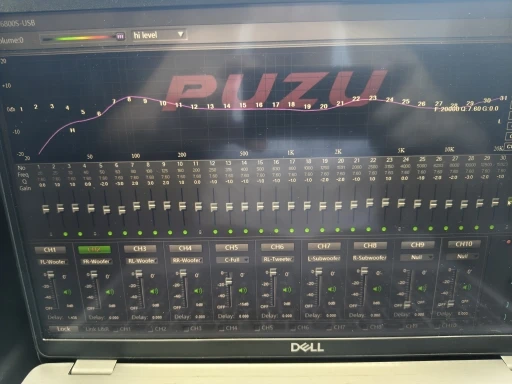

Sound tuning software main parameters
Frequency range 20Hz~20KHz,1Hz steps
– Q:0.40~128 0.01 steps
– Gain:-20.0dB~+20dB,0.1dB steps
– High pass,low pass
– Phase control
– Specialized type fitering:Butterworth,Linkwitz-Rile,Bessel
– Filter crossover pionts:20Hz-20KHz,1Hz steps
– Slopes:6dB,12dB,18dB,24dB,30dB,36dB,42dB,48dB
– up to 20ms of time delay per channel delay unit (ms,cm,inch)
– Save and share tuning presets (8 presets mode available)
– Sources:Bluetooth audio,High-level input (head unit signal),optical SPDIF,Coaxial input,U disc,Analog AUX inputs
(aftermarket head unit signal)
– LCD remote control for volume,preset store/recall,source selection (exta selection)
– Matrix mixing allows for summing and input/output signal management.
– Android app free download
– Windows system software free download
– Limiter:0.1dBu~6dBu 0.1dBu steps
-Release Time: Atk*2,Atk*4,Atk*6,Atk*8,Atk*16,Atk*32
– AT.time:0.3ms~100ms 0.1ms steps
About plug & play diagram please check it below
Price only for PZ-X6800S main unit,not including the harness and remote controller,please select the following proper accessories.
Buy following plug & play harness cable together with main unit of PZ-X6800S upgrade for specific cars,we will ship them in the same package.Please kindly note it,thanks!
well i just want to use universal cable to DIY my sound system,please clink following link
| Weight | 2.8 kg |
|---|---|
| Dimensions | 30 × 25 × 15 cm |
Download
PZ-X6800S Windows software download,press here
PZ-X6800S Android APP,Download press here
PZ=X6800S User’s manual download,press here
IOS APP Download from ISO store,search “PZ-X6800S”
10 reviews for PUZU PZ-X6800S 10channels Car Audio DSP Amplifier 500W RMS power for Premium sound system upgrade support Plug&Play
Add a review
You must be logged in to post a review.
Related products
2020 K5 DL3 1.6 터보 모델인데 PNP 커넥터 연결만으로 제대로 작동합니다.
매우 만족중이고, DIY로 세팅중인데 세팅에는 난이도가 조금 있는 점 참고가 필요합니다.
OEM Krell 시스템의 갑갑하고 타임딜레이로 찍어누른 듯한 사운드가 불만이었는데, DSP 장착하고 세팅해보니 그래도 원하는대로 튜닝이 가능할 것으로 기대하고 있습니다!
Very pleased with my purchase
